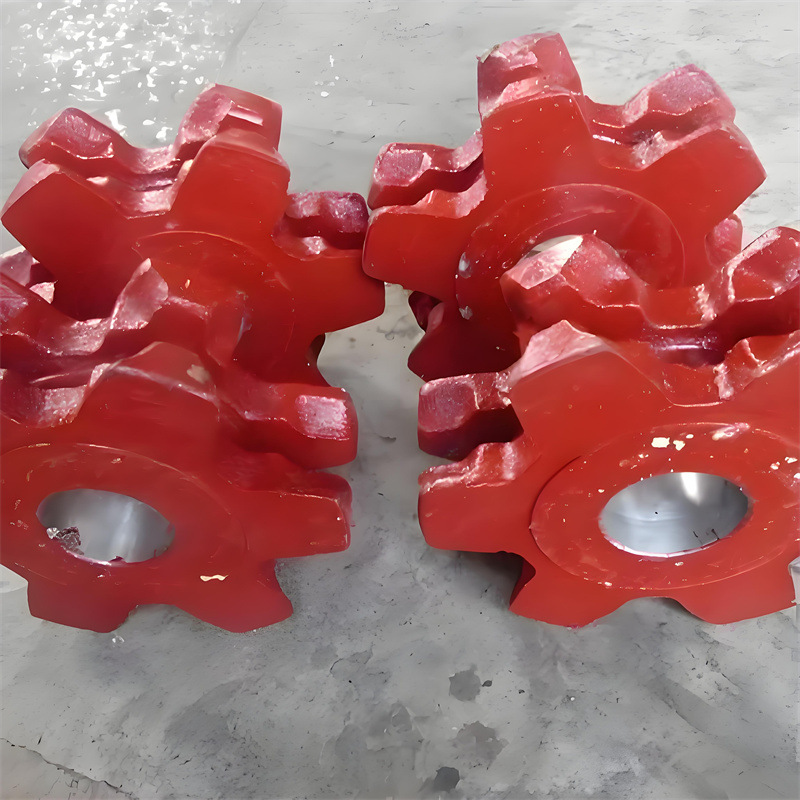

Pocket Wheels are designed to engage DIN 764 and CICSA LH round steel chains through shaped pockets around the wheel circumference. They can be manufactured in one piece or in two halves assembled with transverse screws for easier disassembly. Material options include GS-800 spheroidal graphite cast iron, special case-hardened NiCrMo alloy steel for scrapers and conveyors, and quenched and tempered alloy steel for traction conveyors and other applications. Catalogue models support chain sizes from 10 × 35 mm to 23 × 80 mm with 6–9 pockets.

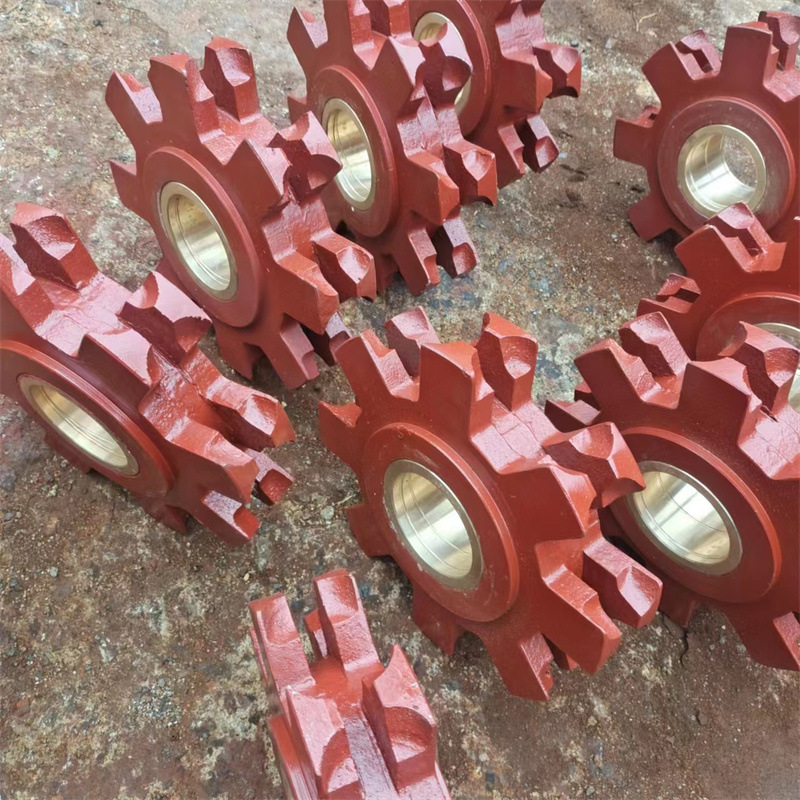

Pocket Wheels guide and drive compatible round steel chains through shaped chain pockets rather than projecting teeth. Each pocket corresponds to the chain dimensions and supports engagement as the chain travels around the wheel.

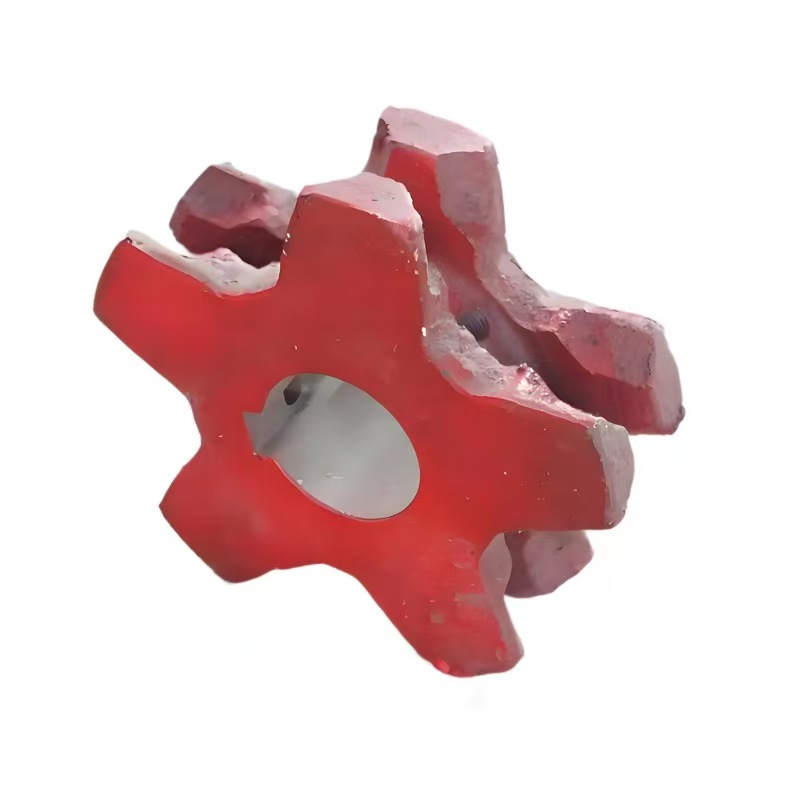

The catalogue includes Pocket Wheels for DIN 764 and TOPONE LH chains. The wheels can use one-piece construction or two-half construction connected by transverse screws for easier disassembly.
Available materials include:
GS-800 spheroidal graphite cast iron
Special case-hardened NiCrMo alloy steel for scrapers and conveyors
Quenched and tempered alloy steel for traction conveyors and other applications

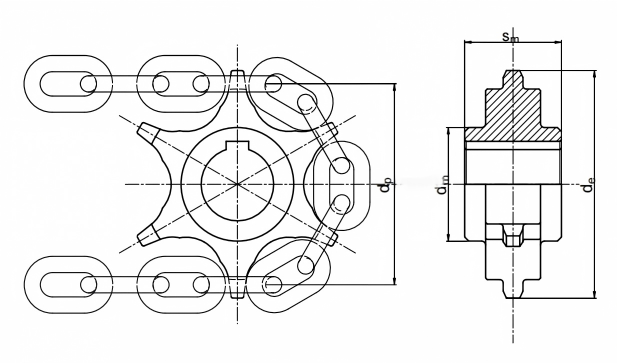

| Chain | dp (mm) | de (mm) | dm (mm) | sm (mm) | Suggested Max. Bore Ø (mm) | No. of Pockets | Mass (kg ≅) |
| 10x35 DIN 764 | 157 | 176 | 88 | 55 | 50 | 7 | 5.2 |
| 13x45 DIN 764 | 203 | 230 | 120 | 70 | 70 | 7 | 11.7 |
| 13x45 DIN 764 | 259 | 282 | 150 | 80 | 100 | 9 | 18 |
| 14x50 LH | 193 | 212 | 120 | 70 | 70 | 6 | 9.5 |
| 16x56 DIN 764 | 252 | 280 | 130 | 100 | 80 | 7 | 23 |
| 18x63 DIN 764 | 244 | 274 | 168 | 100 | 95 | 6 | 24 |
| 18x63 DIN 764 | 284 | 322 | 147 | 90 | 95 | 7 | 27 |
| 18x63 DIN 764 | 363 | 390 | 200 | 120 | 130 | 9 | 58 |
| 19x75 LH | 290 | 314 | 160 | 110 | 110 | 6 | 25 |
| 20x70 DIN 764 | 359 | 400 | 180 | 115 | 140 | 8 | 55 |
| 23x80 DIN 764 | 411 | 450 | 200 | 135 | 140 | 8 | 85 |
| 22x86 LH | 333 | 400 | 160 | 130 | 135 | 6 | 89 |
Name: Pocket Wheels
MOQ: 1 Piece
Package: Carton + Steel Pallet
Manufacturing Standards:
Manufactured for DIN 764 and TOPONE LH round steel chains. Pocket Wheels can use one-piece construction or two-half construction assembled with transverse screws. Material options include GS-800 spheroidal graphite cast iron, special case-hardened NiCrMo alloy steel for scrapers and conveyors, and quenched and tempered alloy steel for traction conveyors and other applications.
Testing Standards:
The TOPONE product catalogue does not specify separate testing standards. Wheel dimensions, matching chain size, number of pockets, suggested maximum bore and material shall correspond to the selected catalogue model.
Application Standards:
Suitable for DIN 764 and TOPONE LH round steel chain systems. The selected material depends on use in scrapers, conveyors, traction conveyors or other applications.
Maintenance Standards:
The catalogue does not specify separate maintenance standards. The two-half construction uses transverse screws to facilitate disassembly.
